NJ-320B Havey Duty Electric Strike + 12V Adapter + Exit Button

Special Price $124.99 Regular Price $159.99
In stock
Heavy Duty , Commercial Use , High Security !

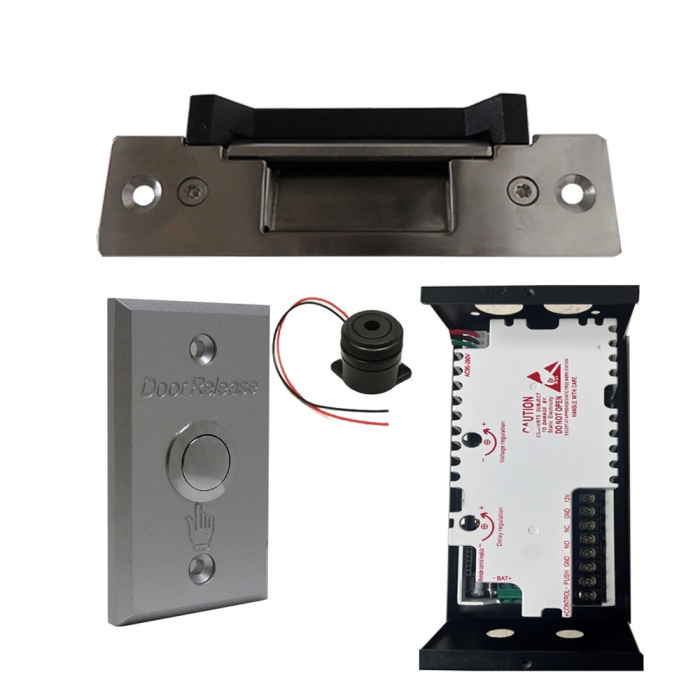

This package includes:
1 NJ-320B E-Strike
1 NU-06 DC12V adapter with 0-15 sec Time Relay
1 NF-62 Exit Button
1 Buzzer

NJ-320B Electric Strike Brief Description:
ANSI, CE, MA Certified
Lock Size: 124Lx32Wx36H(mm)
Holding Stength: 800kg
Fail-safe , Fail-Secure type adjustable
Voltage: 12VDC. Current: 220mA
Suitable Temperature: -30~+55℃
Bolt structure: Stainless Steel
Bolt Housing: Stainless steel,Draw the Polishing of silk
Function: Built-out MOV

NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0~15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

1 years manufacturers warranty
