EL-600 Maglock 600 LBs + 12V Adapter Controller NO/NC + Remote Control Kit

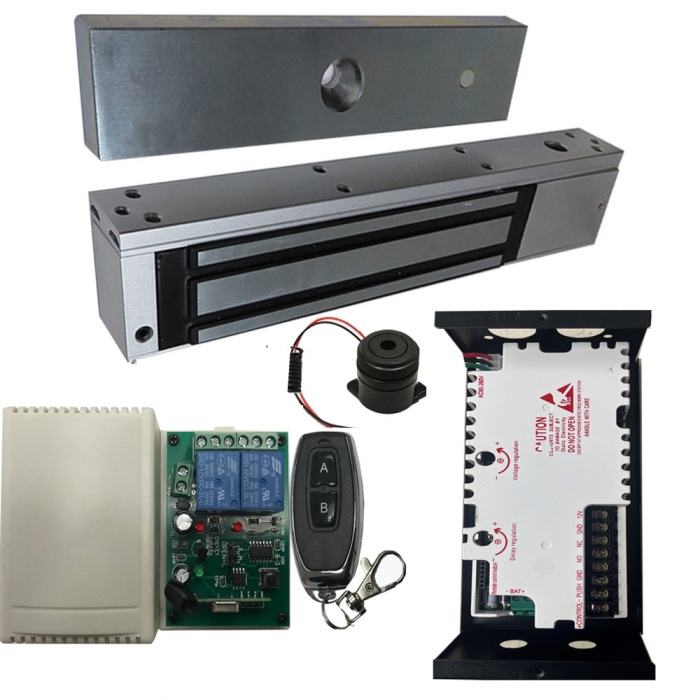

This package includes:
1 EL-600 E-Maglock / 600 LBS Holding force
1 NU-06 DC12V adapter with 0-15 seconds relay
1 EB-19-2D Remote control
1 Buzzer
EL-600 Maglock Brief Description:
Lock Size: 250Lx42Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Operating Temp: -30～+55℃
One-year warranty
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
2 Doors Remote Control with NO/NC/COM Receiver Board:
Dimension: 68 L x 48 W x 15 H ( MM )
Input : 12V DC
Current: 8MA
Contact Input: NO/NC/COM
Transmitting Freq: 315 MHZ
Transmitting Power: 10 mw
Suitable For: Access Control
Transmitting Distance: About 30 Yards(In Open Area)
Capable of to 20 transmitter
Easy to adjust open status by changing Jumper position on the receiver board .
Hold reset button on the receiver board 5 secs to erase all remote controls.
One Year Warranty !
