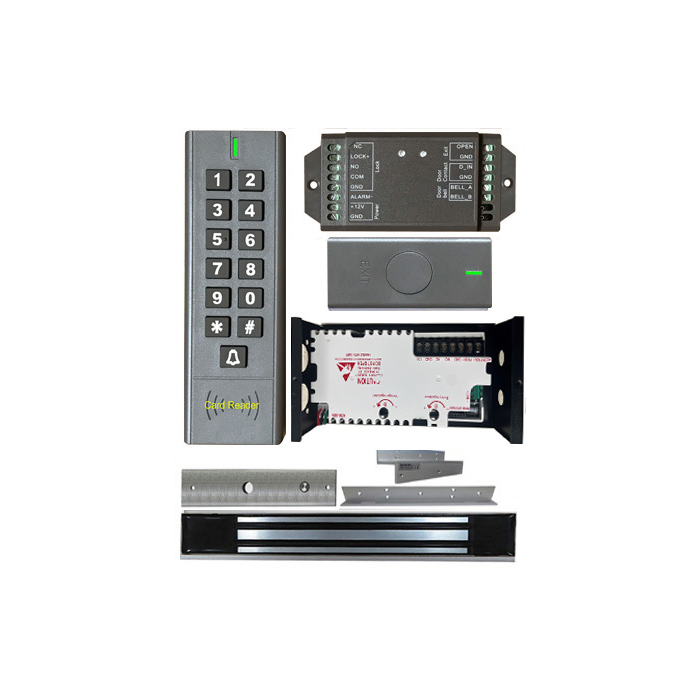

BS-SK7 Wireless Keypad & Card Reader Access Control System, IP66 + Wireless Exit Button + 12V DC Power Adapter + UL listed NW-250 Waterproof Maglock 600 lbs + LB-ZB Bracket

Package Including:

1 BS-SK7 Wireless Keypad & Card Reader Access Control
1 BS-SK7 Wireless Mini Controller
1 BS-SK7 Wireless Exit Button
1 NW-250 Waterproof Magnetic lock/600 LBS Holding force
1 LB-ZB Bracket for NW-250
1 Nu-06 12V DC Adapter Controller with NO/NC

BS-SK7 Wireless Keypad & Card Reader Access Control :

Narrow Stile Dimensions: 5.3"H x 0.9"T x 1.9"W
Operating Voltage:  3 AAA Batteries ( Not included )
Weather and Waterproof . It is IP66
User capacity: 600 user maximum. (500 common user + 100 Visitor user)
100 Visitor User :  Set Up 1-9 Times to Open the Door .
Toggle Mode Available :  Set the Relay to On/Off Toggle Mode.
Door Bell Function : Available
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G

BS-SK7 Wireless Mini Controller :

Dimensions: 3.4'L x 2' W x 1' D (Inch)
Input Voltage: 12V DC
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : < 50 mA
Pairing Wireless Keypad : 5 Max
Pairing Wireless Exit Button : 5 Max
Weight : 62G

BS-SK7 Wireless Exit Button Features:

Dimension: 3.15'L x 1.89'W x 0.6'H ( Inch )
Power : 1 unit of 2032 Lithium Battery
Communication Frequency : 433 MHz
Communication Distance: 100 Feet Max
Working Current :  < 30mA
Weight : 34G
Base On 20 times Per day , It can work about one year .

Nu-06 12V DC Adapter Controller with NO/NC :

Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

UL listed: 294&1034 NW-250 Waterproof Magnetic lock/600 LBS Holding force:

Waterproof Magnetic Lock:
Lock Size: 8.07'Lx1.65'Wx1.14H(inch)
Armature plate: 7.3Lx1.5Wx0.43H(inch)
Holding Force: 250kg (600lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 500mA / 12V or 250mA / 24V
High efficiency with low consumption of power
Suitable for: Wooden door ,Metal door , Fireproof door.
Operation temperature: -10~90℃
Weight: 2.3kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

LB-ZB Bracket :

Works with the Enforcer Electromagnetic Lock with 600 Lbs Holding Force .
Provides a solid mounting option on inward swinging doors
Material Selection: High Strength Aluminum, Sandblast Finished
Opening Mode: 90° Degree Door
Finished for Shell: Anodized aluminum
If you plan to use NW-250S Electronic Magnetic lock / ,this L and Z Bracket can be used for a secure installation on doors that swing inward. The Z bracket consists of two parts and is adjustable for flexible positioning of the armature plate. Also includes cover plate to hide mounting screws.

One Year Warranty
