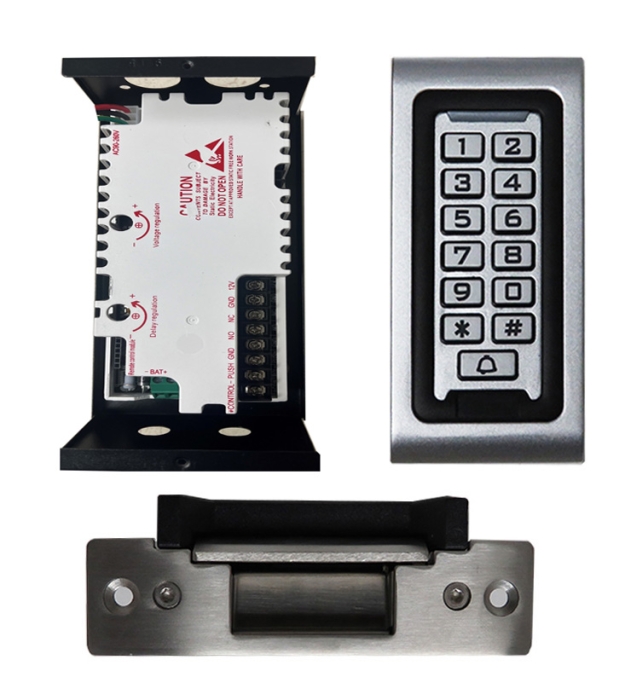

SA-600 Standalone Access control + Power Adapter Controller-NO/NC + Exit Button + Electric Strike
Package Including:
1 NU-6 Power Supply Controller with NO / NC
1 SA-600 Standalone , Keypad, ID Card Access_Control
1 NF-62 Exit Button
1 NJ-320B Electric Strike
SA-600 Brief Description:
Narrow Stile Dimensions: 4-3/4"H x 3/4"Thickness x 2-1/4"W
Operating Voltage: 12V DC
Weather and Waterproof
User capacity: 2000 user maximum.
3-Operation Mode: Card Operation, PassCode Operation, Card+PassCode.
Wiring Requirements: 18 AWG , 20-26 AWG
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 4.7'L x 3.7' W x 1.5' H (Inch)
Input Voltage: 110VAC~260VAC;50HZ~60HZ
Output Voltage: 12VDC; 3A
Output Contact: Access control, Electric Lock, Release Button
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB
NJ-320B Electric Strke :
ANSI, CE, MA Certified
Manufacturer tested to over 1,000,000 cycles
For use on Metal/Aluminum/Wood frames
Lock Size: 4.9'L x 1.26'W x 1.42H ( Inch )
Holding Stength: 800kg
Fail-safe , Fail-Secure type adjustable Click here to see How to adjust
Voltage: 12VDC. Current: 220mA
Suitable Temperature: -20～+55℃
Bolt structure: Stainless Steel
Bolt Housing: Stainless steel,Draw the Polishing of silk
Face plate Housing: Painted Steel
Function: Built-out MOV
One year warranty
