SA-600 Standalone Waterproof Access control + Power Adapter Controller-NO/NC + Exit Button + 600 lbs Maglock

Special Price $219.99 Regular Price $239.99
In stock
SKU
SA-600-NU-06-NF-62-EL-600
Heavy Duty , Commercial Use , Easy to Manage and High Security

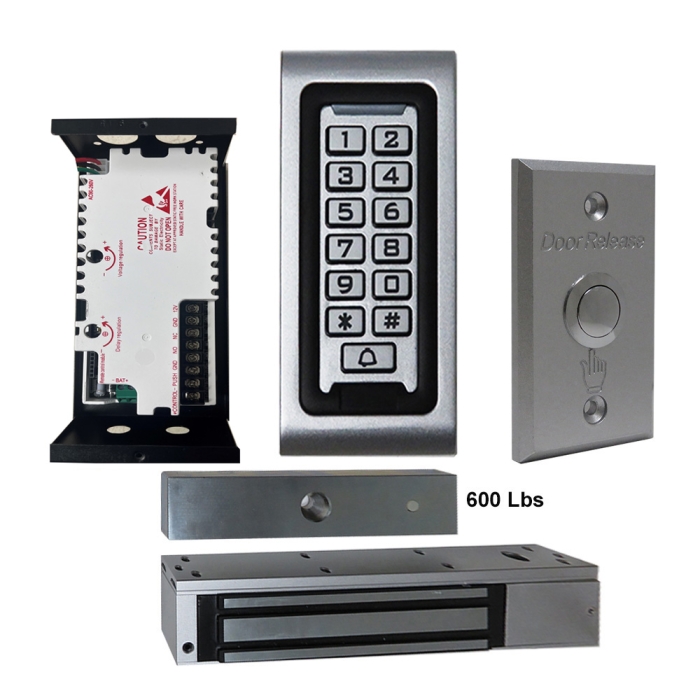

Package Including:
1 NU-6 Power Supply Controller with NO / NC
1 SA-600 Standalone , Keypad, ID Card Access_Control
1 NF-62 Exit Button
1 EL-600 Magnetic Lock / 600 LBS Holding force

SA-600 Brief Description:
Narrow Stile Dimensions: 4-3/4"H x 3/4"Thickness x 2-1/4"W
Operating Voltage: 12V DC
Weather and Waterproof
User capacity: 2000 user maximum.
3-Operation Mode: Card Operation, PassCode Operation, Card+PassCode.
Wiring Requirements: 18 AWG , 20-26 AWG

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0~15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB

EL-600 Magnetic lock/600 LBS Holding force:

Lock Size: 9.84'L x 1.65'W x 0.98'D (Inch)
Armature plate: 7.1'L x 1.5'W x 0.43'D (Inch)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
Operating Temp: -20~+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2 kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

One year warranty !
