NW-250 Waterproof Maglock 600 LBS Holding+12V ADAPTER CONTROLLER NO/NC+Remote Control+Bracket KIT
Heavy Duty , Commercial Use , Easy to Manage and High Security

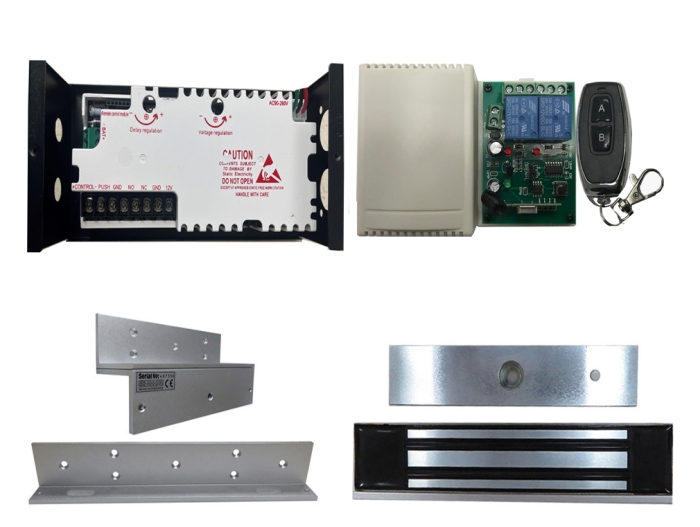

Package Including:
1 NU-6 Power Supply Controller with NO / NC
1 EB-19-2D Remote Control
1 NW-250 Waterproof 600 holding force magnetic lock
1 LB-ZB Bracket
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
2 Doors Remote Control with NO/NC/COM Receiver Board
Dimension: 68 L x 48 W x 15 H ( MM )
Input : 12V DC
Current: 8MA
Contact Input: NO/NC/COM
Transmitting Freq: 315 MHZ
Transmitting Power: 10 mw
Suitable For: Access Control
Transmitting Distance: About 30 Yards(In Open Area)
Capable of to 20 transmitter
Easy to adjust open status by changing Jumper position on the receiver board .
Hold reset button on the receiver board 5 secs to erase all remote controls.
NW-250 Waterproof Magnetic lock/600 LBS Holding force:
Waterproof Magnetic Lock:
Lock Size: 9.25'Lx1.65'Wx1.14H(inch)
Armature plate: 7.3Lx1.5Wx0.43H(inch)
Holding Force: 250kg (600lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 500mA / 12V or 250mA / 24V
High efficiency with low consumption of power
Suitable for: Wooden door ,Metal door , Fireproof door.
Operation temperature: -10~90℃
Weight: 2.3kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above
LB-ZB Bracket :
Works with the Enforcer Electromagnetic Lock with 600 Lbs Holding Force .
Provides a solid mounting option on inward swinging doors
Material Selection: High Strength Aluminum, Sandblast Finished
Opening Mode: 90° Degree Door
Finished for Shell: Anodized aluminum
If you plan to use NW-250S Electronic Magnetic lock / ,this L and Z Bracket can be used for a secure installation on doors that swing inward. The Z bracket consists of two parts and is adjustable for flexible positioning of the armature plate. Also includes cover plate to hide mounting screws.
One year warranty !
