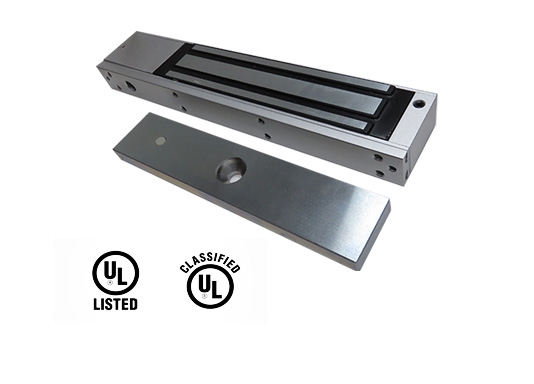

EL-600 Magnetic lock / 600 LBS Holding force

EL-600 Magnetic lock / 600 LBS Holding force

Includes:

• Manual
• Armature Plate
• Mounting Hardware For Basic Out-swing Applications

Specifications:

• Lock Size: 250Lx42Wx25H(mm)
• Armature plate: 180Lx38Wx11H(mm)
• Holding Force: 280kg (600Lbs)
• Voltage:DC12V or DC24V (adjustable)
• Current Draw: 12V/500mA 24V/250mA
• Signal Output: Dry Contact,Max Rating of Contact Current 3A
• Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
• Operating Temp: -20～+55℃
• Suitable Humidity: 0~90%(non-comdensing)
• Finishes for Shell: Anodized aluminum&surface texture processing. Finishes for Magnetic: Zinc. Finishes for Armature: Zinc
• Weight: 2 kg
• One-year warranty
• All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
• In-Swing applications of this maglock require brackets available above
