EL-600 Maglock 600 LBs + 12V Adapter Controller NO/NC + Remote Control Kit + BS-10 WiFi APP Smart Plug with Timer Function
Heavy Duty , Commercial Use , High Security !

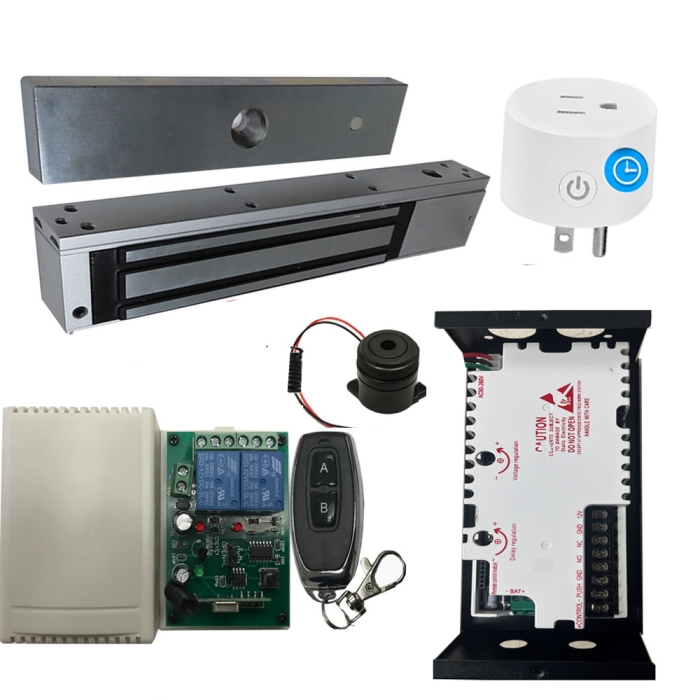

This package includes:
1 EL-600 E-Maglock / 600 LBS Holding force
1 NU-06 DC12V adapter with 0-15 seconds relay
1 EB-19-2D Remote control
1 Buzzer
1 BS-10 WiFi APP Smart Plug with Timer Function
EL-600 Maglock Brief Description:
Lock Size: 250Lx42Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Operating Temp: -30～+55℃
One-year warranty
BS-10 WiFi APP Smart Plug with Timer Function,No Hub Required,Only 2.4GHz Wi-Fi,FCC/Rohs Listed Socket
Smart home outlet only support wi-fi 2.4 GHz,does not support 5 GHz or BT;Please ensure the stability and security of the wi-fi 2.4 GHz network
This round tuya smart plug is recommended to be installed on a three-pin socket, it is not recommended to install two plugs side by side on a two-pin socket
The maximum load current of the smart home plug is 10A,overload protection and a fire-retardant casing ensure complete protection for you and your devices;please take care of your plug, do not drop it to avoid noise during use
No hub or subscription required,simply plug your electrical appliances into smart outlet and connect to Tuya APP under a secured 2.4GHz Wi-Fi network
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
2 Doors Remote Control with NO/NC/COM Receiver Board:
Dimension: 68 L x 48 W x 15 H ( MM )
Input : 12V DC
Current: 8MA
Contact Input: NO/NC/COM
Transmitting Freq: 315 MHZ
Transmitting Power: 10 mw
Suitable For: Access Control
Transmitting Distance: About 30 Yards(In Open Area)
Capable of to 20 transmitter
Easy to adjust open status by changing Jumper position on the receiver board .
Hold reset button on the receiver board 5 secs to erase all remote controls.
One Year Warranty !
