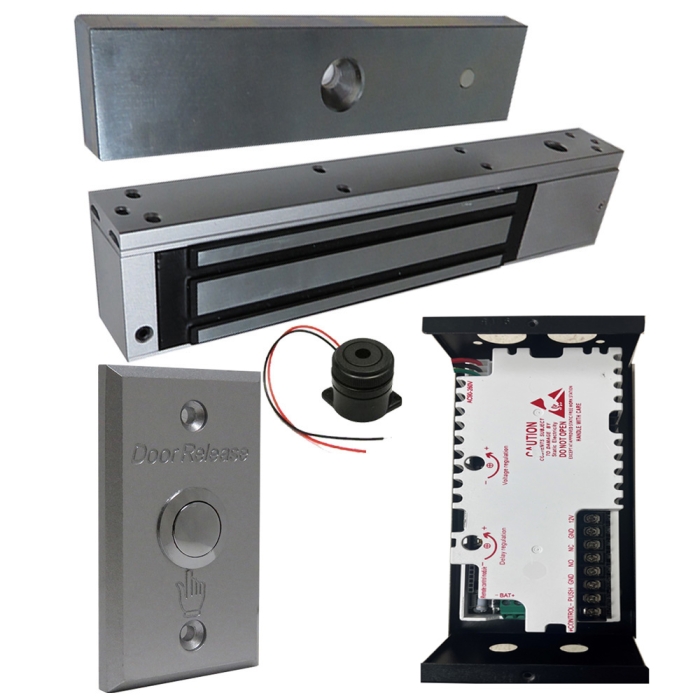

EL-1200 MAGNETIC LOCK 1200 LBs + 12V ADAPTER CONTROLLER NO/NC + EXIT BUTTON KIT

This package includes:
1 EL-1200 E-Maglock 1200 LBS Holding force
1 DC12V adapter with 0-15 sec Time Relay
1 NF-62 Exit Button
1 Buzzer

EL-1200 Maglock Brief Description:

Lock Size: 266Lx67Wx39H(mm)
Armature plate: 185Lx57Wx13H(mm)
Holding Force: 600kg(1200Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Operating Temp: -30～+55℃

NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

One-year warranty
