EL-1200 MAGNETIC LOCK 1200 LBs + 12V ADAPTER CONTROLLER NO/NC + REMOTE CONTROL KIT

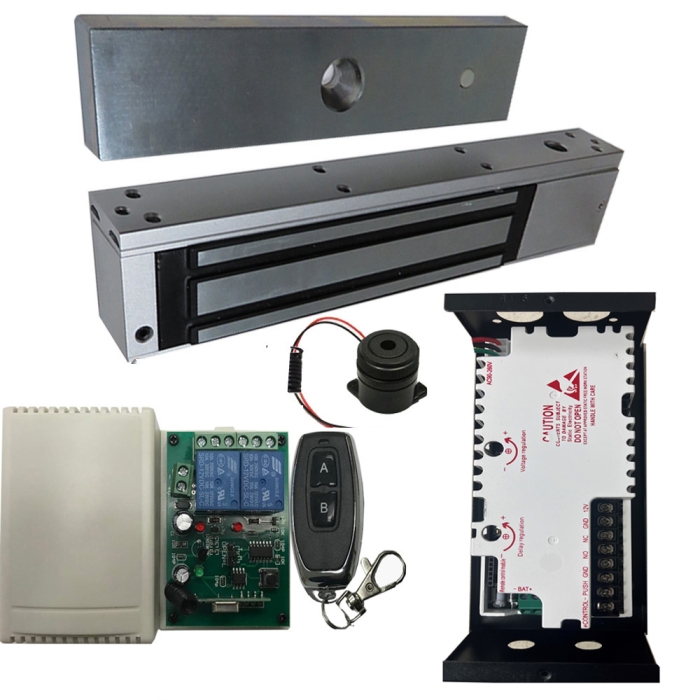

This package includes:
1 EL-1200 Maglock / 1200 LBS Holding force
1 NU-06 DC12V adapters with 0-15 sec Time Relay
1 EB-19-2D Remote Control
1 Buzzer
EL-1200 Maglock Brief Description:
Lock Size: 266Lx67Wx39H(mm)
Armature plate: 185Lx57Wx13H(mm)
Holding Force: 600kg(1200Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Operating Temp: -30～+55℃
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
2 Doors Remote Control with NO/NC/COM Receiver Board
Dimension: 68 L x 48 W x 15 H ( MM )
Input : 12V DC
Current: 8MA
Contact Input: NO/NC/COM
Transmitting Freq: 315 MHZ
Transmitting Power: 10 mw
Suitable For: Access Control
Transmitting Distance: About 30 Yards(In Open Area)
Capable of to 20 transmitter
Easy to adjust open status by changing Jumper position on the receiver board .
Hold reset button on the receiver board 5 secs to erase all remote controls.
One-year warranty
