EB-19-2D Two Doors Remote Control + EL-600 MAGLOCK 600 LBS + 12V ADAPTER CONTROLLER NO/NC/COM KIT + Extra Remote Control

In stock
SKU
EB-19-2D-EL-600+12V-Adapter
Grouped product items
Product Name Qty
EB-19-2D Two Doors Remote Control + EL-600 MAGLOCK 600 LBS + 12V ADAPTER CONTROLLER NO/NC/COM KIT
Special Price $229.99 Regular Price $279.99
EB-2D Two doors remote control only
Special Price $24.99 Regular Price $29.99
Two Doors Remote Control + 2 x magnetic locks + 2 x 12V ADAPTERS CONTROLLER NO/NC/COM KIT

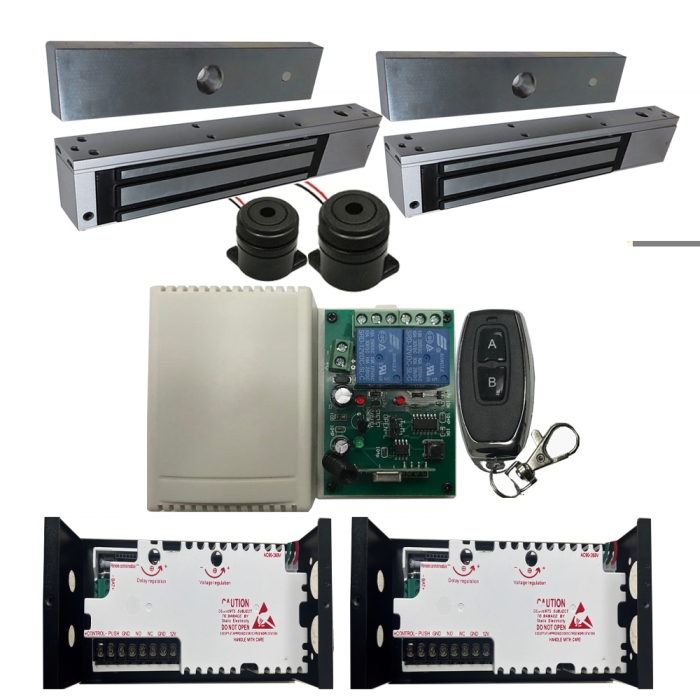

This package includes:
2 x EL-600 E-Maglocks / 600 LBS Holding force
2 x NU-06 DC12V adapters with 0-15 seconds relay
1 x EB-19-2D Two doors remote control with receiver board
2 x Buzzers

2 Doors Remote Control with NO/NC/COM Receiver Board

Dimension: 68 L x 48 W x 15 H ( MM )
Input : 12V DC
Current: 8MA
Contact Input: NO/NC/COM
Transmitting Freq: 315 MHZ
Transmitting Power: 10 mw
Suitable For: Access Control
Transmitting Distance: About 30 Yards(In Open Area)
Capable of to 20 transmitter
Easy to adjust open status by changing Jumper position on the receiver board .
Hold reset button on the receiver board 5 secs to erase all remote controls.

EL-600 Maglock Brief Description:
Lock Size: 250Lx42Wx25H(mm)
Armature plate: 180Lx38Wx11H(mm)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Operating Temp: -30~+55℃

NU-06 12V DC POWER SUPPLY CONTROLLER WITH RELAY FUNCTION AND NO - NC

Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0~15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

One-year warranty
