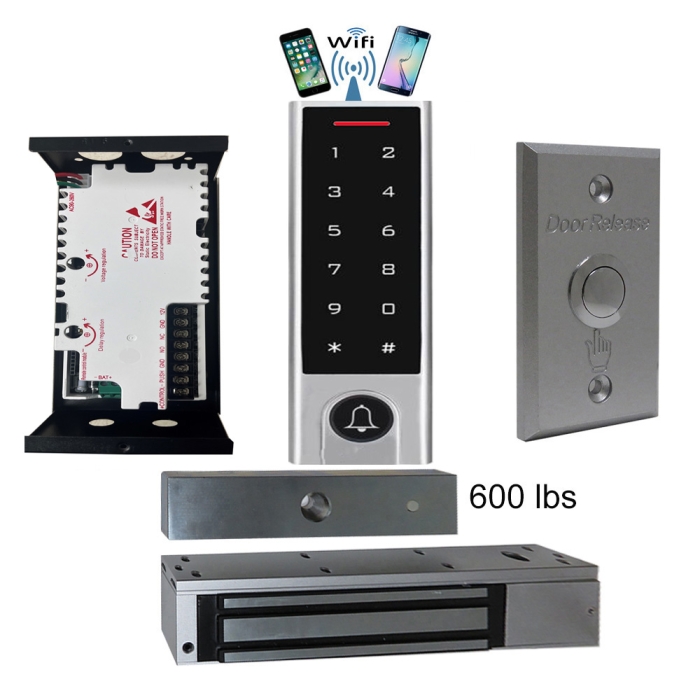

BS-H3 Narrow Stile, Touchscreen keypad, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + Power Adapter + Exit Button + EL-600 Magnetic lock
BS-H3 Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control + Power Adapter + Exit Button + EL-600 Magnetic lock
Package Including:
1 BS-H3 Narrow Stile, Touchscreen keypad , Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control
1 NU-06 Power Supply
1 EL-600 Magnetic lock / 600 LBS Holding Force
1 NF-62 Exit Button
BS-H3 Narrow Stile, Touchscreen keypad, Wifi Mobile APP, Card, Code, Card+Code 4in1 Waterproof Access Control :
The device is a 2.4G WIFI access control, Narrow Stile, Touchscreen keypad and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .
Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including 255 card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG
Feature:
Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 4.7'L x 3.7' W x 1.5' H (Inch)
Input Voltage: 110VAC~260VAC;50HZ~60HZ
Output Voltage: 12VDC; 3A
Output Contact: Access control, Electric Lock, Release Button
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB
EL-600 Magnetic lock/600 LBS Holding force:
Lock Size: 9.84'L x 1.65'W x 0.98'D (Inch)
Armature plate: 7.1'L x 1.5'W x 0.43'D (Inch)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2 kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above
One Year Warranty
