BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + Power Adapter + Exit Button + 2 x EL-600 Magnetic locks + BS-10 APP Smart Timer
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + Power Adapter + Exit Button + 2 x EL-600 Magnetic locks + BS-10 APP Smart Timer

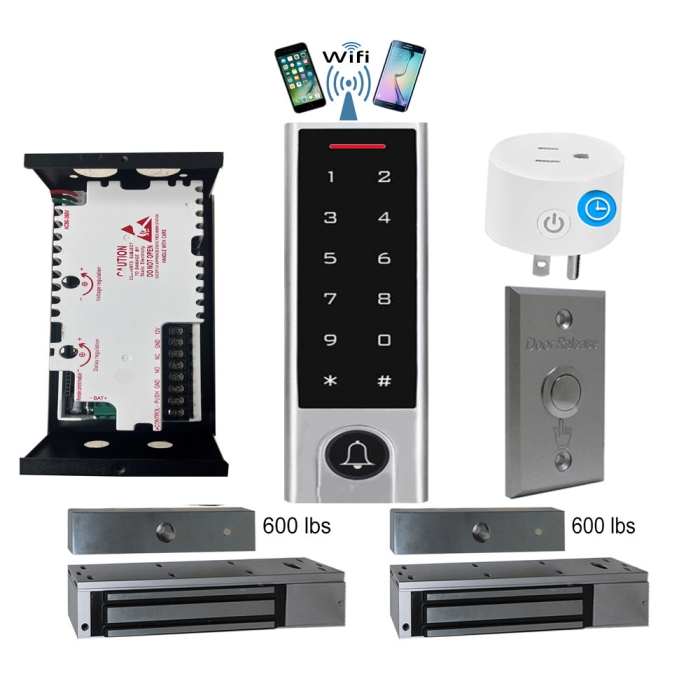

Package Including:
1 BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control
1 NU-06 Power Supply
2 EL-600 Magnetic locks / 600 LBS Holding Force
1 NF-62 Exit Button
1 BS-10 WiFi APP Smart Plug with Timer Function
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, Card+Code 4in1 Waterproof Access Control :
The device is a 2.4G WIFI access control, Narrow Stile, Touchscreen and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .
Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG
Feature:
Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
BS-10 WiFi APP Smart Plug with Timer Function,No Hub Required,Only 2.4GHz Wi-Fi,FCC/Rohs Listed Socket
Smart home outlet only support wi-fi 2.4 GHz,does not support 5 GHz or BT;Please ensure the stability and security of the wi-fi 2.4 GHz network
This round tuya smart plug is recommended to be installed on a three-pin socket, it is not recommended to install two plugs side by side on a two-pin socket
The maximum load current of the smart home plug is 10A,overload protection and a fire-retardant casing ensure complete protection for you and your devices;please take care of your plug, do not drop it to avoid noise during use
No hub or subscription required,simply plug your electrical appliances into smart outlet and connect to Tuya APP under a secured 2.4GHz Wi-Fi network
NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB
2 x EL-600 Magnetic locks/600 LBS Holding force:
Lock Size: 9.84'L x 1.65'W x 0.98'D (Inch)
Armature plate: 7.1'L x 1.5'W x 0.43'D (Inch)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2 kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above
One Year Warranty
