BS-H3 Narrow Stile, Touchscreen, WIFI MOBILE APP, CARD, CODE, CARDCODE 4IN1 IP66 WATERPROOF ACCESS CONTROL + POWER ADAPTER CASE WITH BATTERY BACK UP + EXIT BUTTON + EL-1200 MAGLOCK 1200 LBS
BS-H3 Narrow Stile, Touchscreen, WIFI MOBILE APP, CARD, CODE, CARDCODE 4IN1 WATERPROOF ACCESS CONTROL + POWER ADAPTER CASE WITH BATTERY BACK UP + EXIT BUTTON + EL-1200 MAGLOCK 1200 LBS

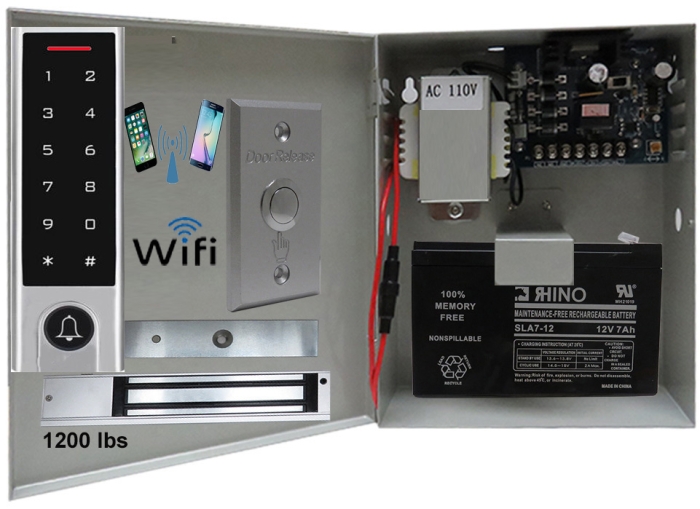

Package Including:
1 BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control
1 EL-1200 Magnetic lock/1200 LBS Holding force
1 12V Backup Battery
1 BS-Z-PS12 12V DC Power Supply Controller With Case
1 NF-62 Exit Button
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control :
The device is a 2.4G WIFI access control, Narrow Stile, Touchscreen and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .
Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG
Feature:
Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs
BS-Z-PS12 12V DC Adapter Controller with NO/NC Case :
Adapter input Voltage: AC100-240V 50Hz-60Hz Dual-Voltage.
12V DC Adapter Controller with NO/NC
Adapter output Voltage: Current: DC12V
12V 7A Battery To Back Up Access Control System :
Size: 6"L + 2.5"W + 2.7"H
Voltage: 12V DC
Current: 7 Ah
100% Memory Free
Maintenance Free
Rechargeable Battery
Weight: 5 lbs
NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB
EL-1200 Magnetic lock/1200 LBS Holding force:
Lock Size: 266Lx67Wx39H(mm)
Armature plate: 185Lx57Wx13H(mm)
Holding Force: 600kg(1200Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Suitable for: Wooden door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4.5kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above
One Year Warranty
