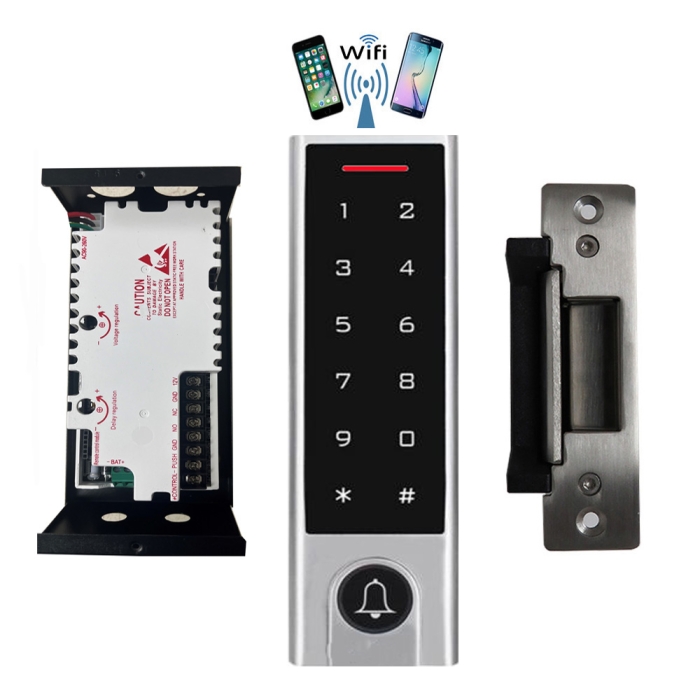

BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + NU-06 Power Adapter + NJ-320 ANSI Heavy Duty Electric Strike
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control + NU-06 Power Adapter + NJ-320 ANSI Heavy Duty Electric Strike
Package Including:
1 BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, Card+Code 4in1 Waterproof Access Control
1 NU-06 Power Supply
1 NJ-320 ANSI Heavy Duty Electric Strike
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, Card+Code 4in1 Waterproof Access Control :
The device is a 2.4G WIFI access control, Narrow Stile, Touchscreen, and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .
Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including 255 card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG
Feature:
Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
NJ-320 ANSI Heavy Duty Electric Strike:
Rugged electric door strike that accepts cylindrical latches, Use this in place of a standard door strike when you are using an outside keypad, prox card reader, or fingerprint reader. It is widely used in the industry, and is commercial-duty.
ANSI, CE, MA Certified
Manufacturer tested to over 1,000,000 cycles
For use on Metal/Aluminum/Wood frames
Lock Size: 124Lx32Wx36H(mm)
Holding Stength: 800kg
Fail-safe , Fail-Secure type adjustable Click here to see How to adjust
Voltage: 12VDC. Current: 220mA
Suitable Temperature: -20～+55℃
Bolt structure: Stainless Steel
Bolt Housing: Stainless steel,Draw the Polishing of silk
Face plate Housing: Painted Steel
Function: Built-out MOV
One Year Warranty
