BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + NU-06 Power Adapter + HES-9600 E-Strike of Push Bar + BS-10 APP Smart Timer

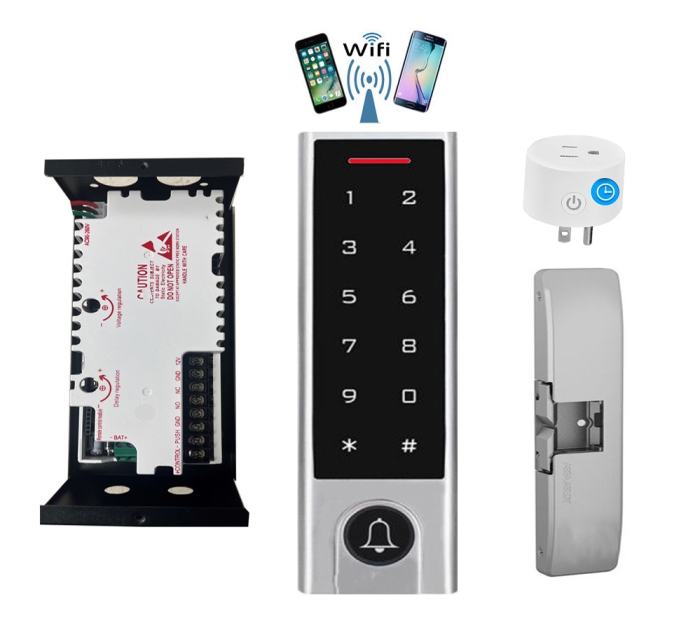

Package Including:
1 BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control
1 NU-06 Power Supply
1 HES-9600 Heavy Duty Electric Strike of Push Bar
1 BS-10 WiFi APP Smart Plug with Timer Function

BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control :

https://youtu.be/Lf9p6T--0G8

The device is a 2.4G WIFI access control, Narrow Stile, Touchscreen and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .

Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG

Feature:

Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

BS-10 WiFi APP Smart Plug with Timer Function,No Hub Required,Only 2.4GHz Wi-Fi,FCC/Rohs Listed Socket

Smart home outlet only support wi-fi 2.4 GHz,does not support 5 GHz or BT;Please ensure the stability and security of the wi-fi 2.4 GHz network
This round tuya smart plug is recommended to be installed on a three-pin socket, it is not recommended to install two plugs side by side on a two-pin socket
The maximum load current of the smart home plug is 10A,overload protection and a fire-retardant casing ensure complete protection for you and your devices;please take care of your plug, do not drop it to avoid noise during use
No hub or subscription required,simply plug your electrical appliances into smart outlet and connect to Tuya APP under a secured 2.4GHz Wi-Fi network

HES 9600 630 Surface Mount Grade1 Electric Strike For Push Bar:

The HES 9600 Series Electric Strike is a windstorm rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4″ throw latch. All components are completely encased within its 3/4″ thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. The outdoor rated HES 9600 Strike is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.

The 9600 was the first surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.

9600 HES is one of the most popular electric strikes for rim exit devices because of the durability and trust that HES has.

Frame application

• Metal
• Wood

Electrical

When you see the term 9600*12 or 9600*24 it means one of these voltages.

• .45 Amps at 12 VDC continuous duty
• .25 Amps at 24 VDC continuous duty

Standard Features

• Installs in metal or wood frames
• Separate base and cover for easy adjustments
• Stainless steel construction
• Tamper resistant
• Static strength 2,000 lbs.
• Dynamic strength 120 ft-lbs.
• Endurance 1,000,000 cycles
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 3/4″ Pullman latch
• Weight : 1.7 Lbs
• Dimensions : 0.5 × 3.375 × 2.25 in
• Country of Origin : USA
• Faceplate Size : 9 inches x 1-3/4' inches
• Holding Force : 2000 LBS
• Finish Title : 630/US32D
• Finish Description : Satin Stainless Steel
• Grade 1
• Limited Warranty : 5 Years
