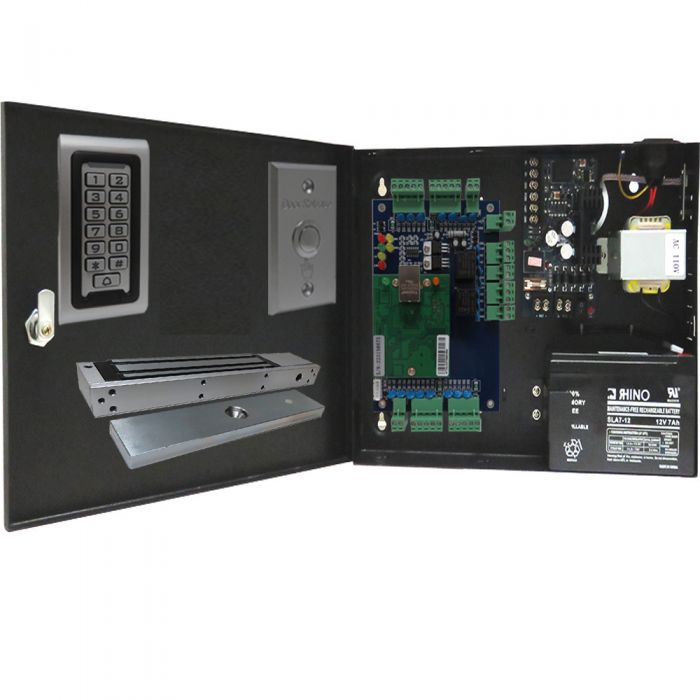

BS-002M 2-DOORS TCP/IP ACCESS CONTROL+POWER SUPPLY+12V BATTERY+2 READERS+2 EXIT BUTTONS+2 x 600 LBs MAGLOCKS

Package Including:
1 NU-05 Access Control Case and Power Supply
1 BS-002 LC Security Two-Door Access Control board
2 SA-600 Card Readers with Keypad
1 System Software
2 NF-62 Exit Buttons
2 EL-600 Electric Maglock / 600 LBS Holding force
1 12V 7am Battery

BS-002 LC Security Access Control  Brief Description:
TCP/IP Two-Door Access Control board
Communication: TCP/IP 10M/100M adaptive
Control 2 doors, get in and out door by swiping card, or get in by swiping
card and get out door by exit button
Power Supply: 12VDC 4-7A
Power Consumption of Circuit Board: Less than 100mA
Input Format of Reader: Wiegand 26 ID card
Door opening time extending setting: 1-600 seconds(adjustable)
Operation Temperature: - 40 C~70 C
Quantity of users: 20,000 Users
Quantity of Event Buffers(offline): 100,000 event buffers
Max Distance from Reader to Controller: 130 yard .
Fire and alarm linkage: If no connection with the expansion board, only has
software interface alarm, and drive the computer speaker. If connected with
expansion board, is able to alarm by hardware, if connected with strengthened
expansion board, then is able to Security alarm
Open door in remote distance: Yes
Anti pass back and tail: Yes
Open long time at specified time: Yes
Urgency locking: Yes
First card unlocking: Yes
Unlock based on internal and external validation: Yes
Keypad (Card , card+password, super password): Yes
Compatible with HID reader and card : Yes

Warranty One Year !
