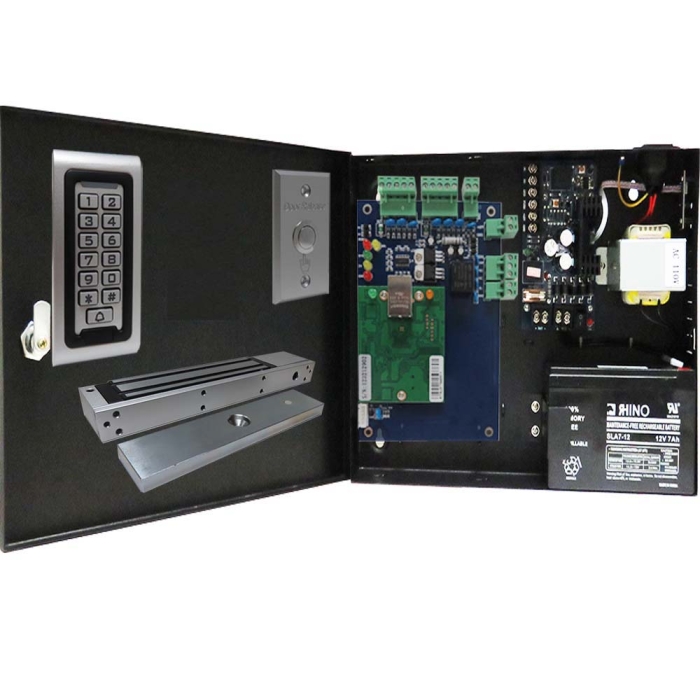

BS-001M SINGLE DOOR TCP/IP ACCESS CONTROL+POWER SUPPLY+12V BATTERY+ READER+EXIT BUTTON+1 X 600 LBS MAGLOCK

Package Including:
1 NU-05 Access Control Case and Power Supply
1 BS-001 LC Security Single Door Access Control board
1 SA-600 RFID Card Reader with Keypad
1 System Software
1 NF-62 Exit Button
1 EL-600 Electric Magnetic lock / 600 LBS Holding force
1 12V 7am Battery

BS-001 LC Security Access Control  Brief Description:
TCP/IP Single Door Control Panel
Communication: TCP/IP 10M/100M adaptive
Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by exit button
Size of PCB board: 160mm x 106mm
Size of Case: 273mm*228mm*65mm
Power Supply: 12VDC 4-7A
Power Consumption of Circuit Board: Less than 100mA
Input Format of Reader: Wiegand 26 ID card
Quantity of Readers: 1 pair
Door opening time extending setting: 1-600 seconds(adjustable)
Operation Temperature: - 40 C~70 C
Quantity of users: 20,000 Users
Quantity of Event Buffers(offline): 100,000 event buffers
Max Distance from Reader to Controller: 130 yard .
Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Compatible with HID reader and card.

Warranty One Year !
