SA-600 Standalone Access control + Power Adapter Controller-NO/NC + Exit Button + 2 x 1200 lbs Maglock For Double Doors

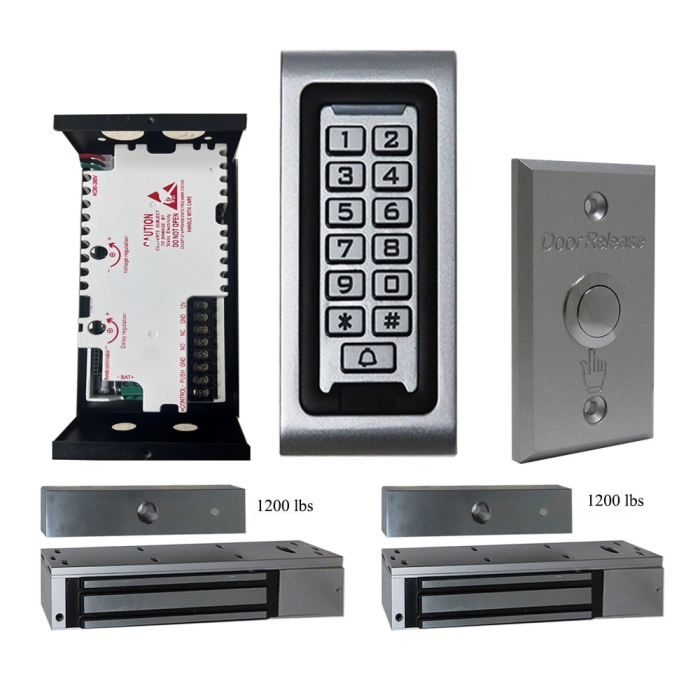

Package Including:
1 NU-6 Power Supply Controller with NO / NC
1 SA-600 Standalone , Keypad, ID Card Access_Control
1 NF-62 Exit Button
2 x EL-1200 Magnetic Lock / 1200 LBS Holding force

SA-600 Brief Description:
Narrow Stile Dimensions: 4-3/4"H x 3/4"Thickness x 2-1/4"W
Operating Voltage: 12V DC
Weather and Waterproof
User capacity: 2000 user maximum.
3-Operation Mode: Card Operation, PassCode Operation, Card+PassCode.
Wiring Requirements: 18 AWG , 20-26 AWG

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector

NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB

2 x EL-1200 Magnetic lock/1200 LBS Holding force: ( For Double Doors )

Lock Size: 266Lx67Wx39H(mm)
Armature plate: 185Lx57Wx13H(mm)
Holding Force: 600kg(1200Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Suitable for: Wooden door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4.5kg
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

One year warranty !
