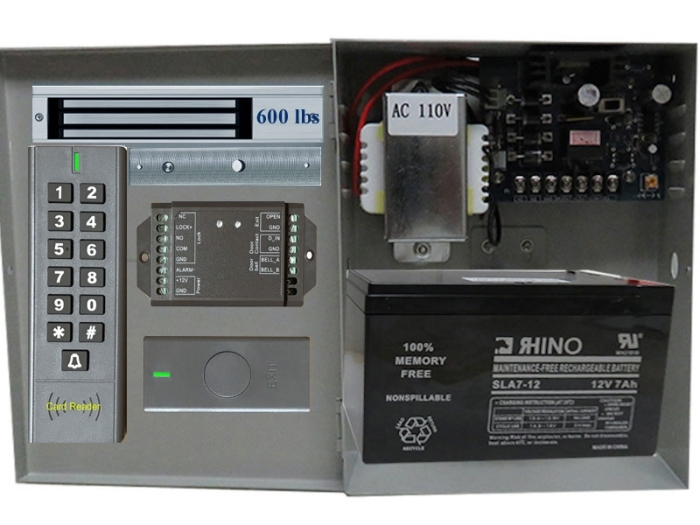

BS-SK7 Wireless Keypad & Card Reader Access Control System, IP66 + Wireless Exit Button + 12V DC Power Adapter Case + Backup Battery + EL600 Maglock 600 lbs

Package Including:
1 BS-SK7 Wireless Keypad & Card Reader Access Control
1 BS-SK7 Wireless Mini Controller
1 BS-SK7 Wireless Exit Button
1 EL-600 Magnetic lock/600 LBS Holding force
1 12V Backup Battery
1 BS-Z-PS12  12V DC Power Supply Controller With Case

BS-SK7 Wireless Keypad & Card Reader Access Control :

Narrow Stile Dimensions: 5.3"H x 0.9"T x 1.9"W
Operating Voltage:  3 AAA Batteries ( Not included )
Weather and Waterproof . It is IP66
User capacity: 600 user maximum. (500 common user + 100 Visitor user)
100 Visitor User :  Set Up 1-9 Times to Open the Door .
Toggle Mode Available :  Set the Relay to On/Off Toggle Mode.
Door Bell Function : Available
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G
Communication Distance :  100 Feet Max
Working Current : <  80 mA
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 90%
Weight : 150G

BS-SK7 Wireless Mini Controller :

Dimensions: 3.4'L x 2' W x 1' D (Inch)
Input Voltage: 12V DC
Communication Frequency : 433 MHz
Communication Distance :  100 Feet Max
Working Current : < 50 mA
Pairing Wireless Keypad : 5 Max
Pairing Wireless Exit Button : 5 Max
Weight : 62G

BS-SK7 Wireless Exit Button Features:

Dimension: 3.15'L x 1.89'W x 0.6'H ( Inch )
Power : 1 unit of 2032 Lithium Battery
Communication Frequency : 433 MHz
Communication Distance: 100 Feet Max
Working Current :  < 30mA
Weight : 34G
Base On 20 times Per day , It can work about one year .

BS-Z-PS12 12V DC Adapter Controller with NO/NC Case  :

Adapter input Voltage: AC100-240V 50Hz-60Hz Dual-Voltage.
12V DC Adapter Controller with NO/NC
Adapter output Voltage: Current: DC12V

12V 7A Battery To Back Up Access Control System :

Size: 6"L + 2.5"W + 2.7"H
Voltage: 12V DC
Current: 7 Ah
100% Memory Free
Maintenance Free
Rechargeable Battery
Weight: 5 lbs

EL-600 Magnetic lock/600 LBS Holding force:

Lock Size: 9.84'L x 1.65'W x 0.98'D (Inch)
Armature plate: 7.1'L x 1.5'W x 0.43'D (Inch)
Holding Force: 280kg (600Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2 kg
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

One Year Warranty
