BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 IP66 Waterproof Access Control + Power Adapter + Exit Button + EL-1200 Maglock 1200 lbs
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control + Power Adapter + Exit Button + EL-1200 Maglock 1200 lbs

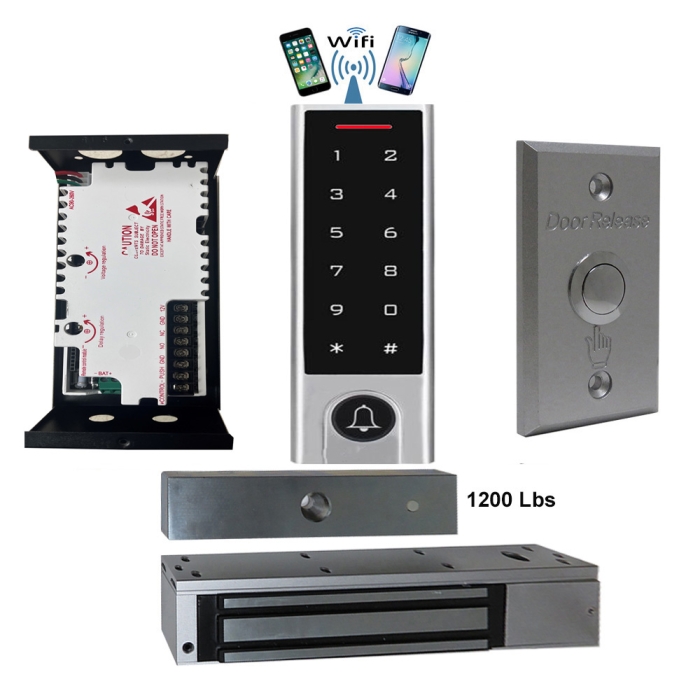

Package Including:
1 BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, CardCode 4in1 Waterproof Access Control
1 NU-06 Power Supply
1 EL-1200 Magnetic lock / 1200 LBS Holding Force
1 NF-62 Exit Button
BS-H3 Narrow Stile, Touchscreen, Wifi Mobile APP, Card, Code, Card+Code 4in1 Waterproof Access Control :
The device is a 2.4G WIFI access control ,Narrow Stile, Touchscreen keypad and proximity card reader,which supports EM card types, This device is a single door multifunction standalone access controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance.The operation is very user-friendly and low-power circuit makes it long service life.
The device support 1000 users ( 988 common users + 2 panic users + 10 Vistor users.) It supports multi access modes in card access. Wifi APP on the phone , Pin code and Card .It has extra features including block enrollment. Waterproof conforms IP66 .
Narrow Stile Dimensions: L 5-7/8’ x W 1-3/4’ x Thick 7/8’
Operating Voltage: 12V DC
Weather and Waterproof IP66
User capacity: 1000 user maximum.
APP User: 100 (including card/PIN users)
Add / Delete users by APP
Read Range : 2-6 CM.
Stainless Steel housing, anti-vandal
iOS and Android available
4-Operation Mode: Wifi Mobile APP, Card Operation, PassCode Operation, Card Code Access.
Wiring Requirements: CAT5 , 18 AWG , 20-26 AWG
Feature:
Remote Control to open from Any where by APP on cell phone and APP can track open records.
Send visitor passcode (Maximum 10 ) with time limit from cell phone.
Backlight keypad: Easy to operate at night
Compatible with 2.4G Wifi Router
Card type: EM
Operating Temperature: -40' F To 140' F
Operating Humidity : 10% to 98%
Weight : 0.8 lbs
Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 7'L x 3.5' W x 2.5' H (Inch)
Input Voltage: 90VAC~260VAC;50HZ~60HZ
Output Voltage: 11-14VDC; 5A
Output Contact: Access control, Electric Lock, Release Button ,NO/NC, Com.....
Time Relay: 0～15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock
Backup Battery Connector
NF-62 Exit Button:
Dimension: 3.4' L x 1.97' W x 0.79' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Weight: 0.5 LB
EL-1200 Magnetic lock/1200 LBS Holding force:
Lock Size: 10.5L x 2.64W x 1.54H (Inch)
Armature plate: 7.3L x 2.25W x 0.51H (Inch)
Holding Force: 1200Lbs
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Suitable for: Wooden door ,Metal door , Fireproof door.
Operating Temp: -20～+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 8 lbs
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above
One Year Warranty
