High Quality VDP-C37 Video Door Phone 7' Monitor with Weatherproof Outside Camera + POWER ADAPTER + EXIT BUTTON + 1200 LBS MAGLOCK

$289.99 $349.99
In stock
SKU
VDP-C37+POWER ADAPTER+EXIT BUTTON+EL-1200
High Quality VDP-C37 Video Door Phone 7' Monitor with Weatherproof Outside Camera + POWER ADAPTER + EXIT BUTTON + 1200 LBS MAGLOCK

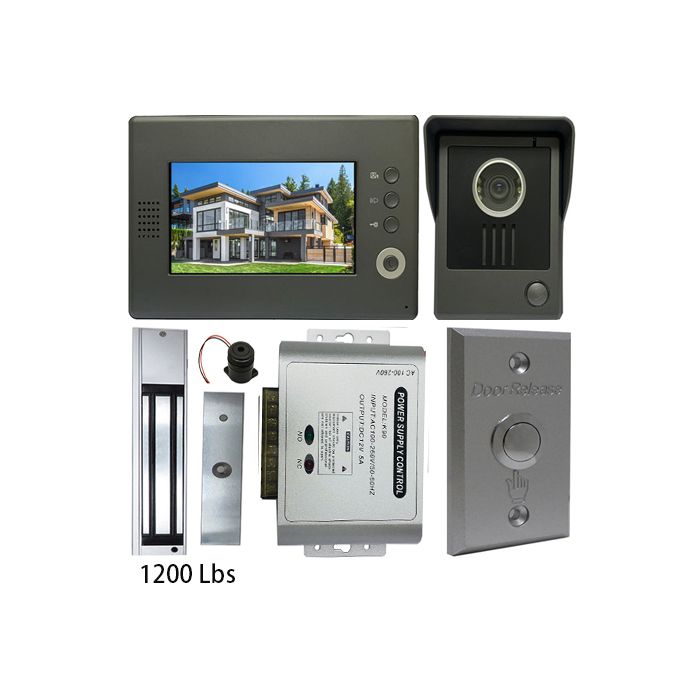

Package Including:
1 VDP-C37  7'inches Video Door Phone Monitor with outside Camera
1 NU-6 Power Supply Controller with NO / NC
1 EL-1200 Magnetic Lock / 600 LBS Holding force
1 BS-50 Exit Button
1 Buzzer

Video Door Phone: High Quality !

Adapter input Voltage: AC100-240V 50Hz-60Hz Dual-Voltage.
Adapter output Voltage: Current: DC15V 1500mA
DIY Easy to install . Wall Mounting
7" TFT Color Display .
Handfree intercom,Door releasing,Video Monitoring.
Brightness, Brightness and Volume adjustable
2 wire Non-Polar System
Temperature -10' C to 50' C
Dimension : 9.5'(L) x 6-1/4'(W) x 1'(T)
Working distance: 165 Feet

Outdoor Camera: ( One Camera can connect 3 indoor monitors at most )

Night vision illumination distance; more than 1 meters
Gain control: Automatic
Illumination: 0.1 Lux
Camera angle: 92 C degrees wide-angle
Door bell and Call button to talk with indoor unit
Waterproof
Temperature -10' C to 50' C
Dimension : 4'(L) x 5-1/4'(W) x 2'(H) Inches

Nu-06 12V DC Adapter Controller with NO/NC :
Dimensions: 4.7'L x 3.7' W x 1.5' H (Inch)
Input Voltage: 110VAC~260VAC;50HZ~60HZ
Output Voltage: 12VDC; 3A
Output Contact: Access control, Electric Lock, Release Button
Time Relay: 0~15sec.
Standard Designe: Steel material, Painted
Protect Safely: Short Circuit protection
Suitable For : Access control, Electric lock

BS-50 Exit Button:
Dimension: 4.5' L x 2.8' W x 0.89' H (Inch)
Current Rate: 3A, 12-36V max
Output Contact: NO/COM
Mechanical Life: 100000 times Tested
Panel Material: 304 Stainless Steel
Operating Temperature : 14°F-131°F
Operating Humidity: 0-95% (non-condensing)
Weight: 0.5 LB

EL-1200 Magnetic lock/1200 LBS Holding force:

Lock Size: 10.5L x 2.64W x 1.54H (Inch)
Armature plate: 7.3L x 2.25W x 0.51H (Inch)
Holding Force: 1200Lbs
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Suitable for: Wooden door ,Metal door , Fireproof door.
Operating Temp: -20~+55℃
Suitable Humidity: 0~90%(non-comdensing)
Finishes for Shell: Anodized aluminum&surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 8 lbs
One-year warranty
All Magnetic Locks Include Manual, Armature Plate & Mounting Hardware For Basic Out-swing Applications
In-Swing applications of this maglock require brackets available above

One year warranty !
